iFixit tears down iPhone Duo, finds possible causes of early screen

Apple launched its first foldable smartphone, the iPhone Duo, and repair specialist iFixit completed a hardware disassembly evaluating its construction. As detailed in 9to5Mac's report, the initial teardown awarded the device a provisional repairability score of 5 out of 10, the highest score iFixit has ever granted to a foldable phone. Disassembly reveals complex hinge engineering, an IP68 ingress protection rating, structural retaining clips, and electrically releasable adhesive securing two internal battery cells alongside mechanical clues explaining early display failures.

This technical report breaks down the internal architecture of the iPhone Duo for prospective buyers, engineers, and current owners. We examine the physical waterdrop hinge geometry, the dual-cell battery system, modular display bezels, and the nano-texture surface designed to scatter crease reflections. Additionally, this analysis details the mechanical interactions between curved guide rails and internal cables to explain why certain units exhibit crunching sounds and display line failures.

IFixit tears down iPhone Duo: what actually changed

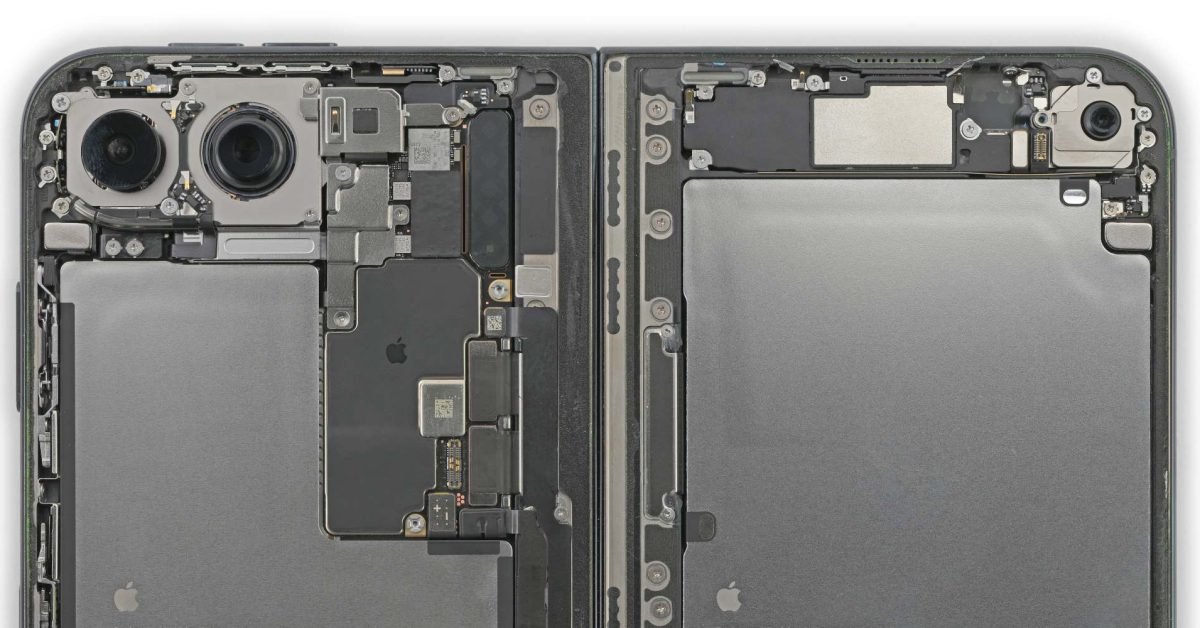

The physical teardown reveals notable structural departures from competing foldables, beginning with chassis assembly and display mounting. Rather than relying entirely on adhesive to secure the bezel around the inner folding screen, Apple used mechanical clips that allow the frame to release intact without breaking. The outer cover display also detaches with surprising ease, simplifying repairs because several internal procedures require removing this panel first. Inside, the device features a redesigned logic board layout and independent display layers engineered to shift autonomously across the fold to accommodate chassis movement.

Power delivery relies on a dual-cell architecture split across both halves of the folding chassis. One battery sits beneath the rear glass, while the second is positioned under the outer display, requiring technicians to open both sides for full replacements. The larger battery has a capacity of 11.567 Wh, and the smaller cell provides 7.506 Wh, totaling 19.073 Wh. Apple secured both cells with electrically releasable adhesive, allowing clean removal without mechanical prying in what technicians called the best battery-removal experience yet seen in a commercial foldable smartphone.

IFixit tears down iPhone Duo: how it works

The folding mechanism centers on an intricate hinge that combines miniature gears, internal springs, and interconnected metal joints around a waterdrop cavity. This waterdrop profile creates internal space for the flexible display to bend at a gentle radius without forming a sharp fold, a common challenge in folding hardware. Apple added custom curved guides to control how the joints move, regulating mechanical motion to reduce stress placed on delicate display layers as the phone opens and closes throughout daily operation.

On the visual surface, Apple used a matte nano-texture display to disguise the crease by diffusing reflected light across the bend. Under a microscope, technicians observed tiny rounded bumps that scatter reflections across the panel. The screen also features oval-shaped subpixels oriented in alternating directions, matching patent documentation designed to reduce diffraction artifacts and visual distractions. Over the inner selfie camera, the panel adopts wider pixel gaps and rounded clusters similar to the iPhone 18 Pro under-display infrared camera to transmit incoming light to the sensor.

IFixit tears down iPhone Duo: why it matters now

The teardown sets an industry benchmark by awarding the iPhone Duo a provisional repairability score of 5 out of 10, the highest mark iFixit has ever given a foldable phone. Foldables historically receive low scores due to fragile ribbon cables, aggressive glue, and destructive screen removals that make repairs impractical. Apple countered these issues by using non-destructive bezel clips and debondable battery adhesives. Although this 5 out of 10 score remains provisional pending replacement part availability, it establishes an encouraging standard for foldable device serviceability.

The phone also features an IP68 rating, certifying that the chassis is completely dust-tight and capable of surviving fresh water submersion up to 6 meters deep for 30 minutes. Technicians introduced fluorescent dust particles to track ingress during folding, discovering that surprisingly little dust entered the hinge compared to competing foldables, despite the hinge producing crunchy sounds after exposure. Combining verified water resistance with accessible battery chemistry and removable adhesive tabs marks an important engineering advancement in commercial foldable hardware durability and maintenance.

IFixit tears down iPhone Duo: who is affected

Early adopters and active users cycling the device have reported troubling hardware anomalies that indicate localized physical vulnerability along the inner screen. Multiple owners describe hearing an audible crunching sound while opening or closing the phone, followed immediately by permanent bright lines appearing across the flexible display. Teardown footage and CT scans show that these reported failures consistently occur in the same location, near the transition between the cable opening connecting both chassis halves and the central hinge support framework.

Analysis indicates that several structural metal edges converge around that cable transition, creating concentrated stress points beneath the screen. Three-dimensional hinge models built from CT scans, disassembly footage, and Apple patents indicate that an internal central support bar may fail to retract properly when closed, exerting excessive pressure against the display. Furthermore, curved guide rails rise above adjacent parts during folding and could interfere with the screen if misaligned, putting active users at risk of mechanical panel damage during normal handling.

IFixit tears down iPhone Duo: what to watch

Engineers and consumers are watching to see if Apple will refine manufacturing tolerances or issue service advisories regarding the central support bar and curved guide rails. Because iFixit constructed a functioning 3D model using CT scans and patent filings, technicians now have a clear baseline to examine how internal hinge kinematics impact display integrity. Observers are tracking whether future production runs modify cable pass-through clearances or guide rail movements to eliminate direct mechanical contact with display layers during regular folding cycles.

The broader repair ecosystem is also monitoring the commercial release of official replacement parts, which will determine whether the provisional 5 out of 10 repairability score becomes permanent. Repair providers are awaiting genuine outer displays, display bezel clips, and replacement adhesives for the 11.567 Wh and 7.506 Wh batteries. Furthermore, long-term testing will evaluate whether the nano-texture surface bumps maintain crease concealment over years of folding, defining the lasting durability and maintenance profile of the iPhone Duo across its operational lifetime.
